Serie ASD-DMC
Cabecera de Alimentación Remota Tipo Pasarela

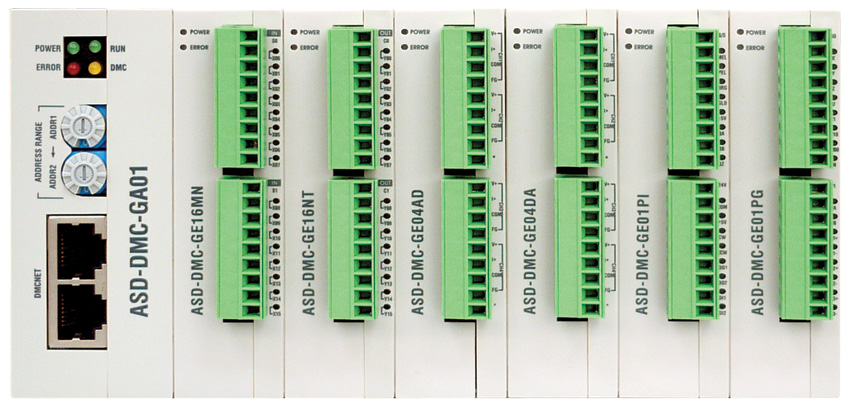

La cabecera GA01 de alimentación actúa como una estación pasarela para los esclavos DMCNET y se conecta a los módulos remotos de E/S digital y a los módulos remotos de E/S analógica y a los módulos remotos de pulso en la red DMCNET para su control remoto.
Características y beneficios
- En un GA01 se pueden conectar hasta un máximo de cuatro módulos GE01PH
- Instalación en carril DIN
- Tensión de alimentación: 24VDC (15% ~ 20%)
- ESD: 8KV Aire Discharge
- EFT: Power Line-2KV
- E/S digital 1 KV
- RS: 80MHz ~ 1GHz, 10V/m
- Temperatura de funcionamiento: 0°C ~ 50°C (32°F ~ 122°F)
